A platform-independent RIPscrip-compatible drawing library in pure C99.

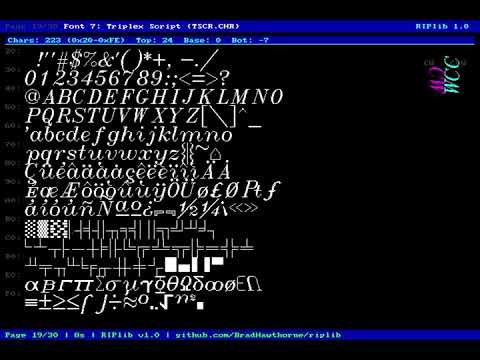

31-page diagnostic harness running on RP2350 HSTX → DVI at 720×480 60fps. Click to watch.

RIPlib provides a complete 2D rendering engine with 37+ drawing primitives, 10 BGI stroke fonts, and a broad RIPscrip protocol parser for v1.54 (Level 0/1), v2.0 (Extended + Level 2 Drawing Ports), v3.0, v3.1 (§A2G.1-7 extensions), and v3.2 (§A2G.8-13 quality-of-life refinements). Storage-oriented client features are mapped to an in-memory icon/clipboard cache and host request queue on embedded targets, and hardware/host-only protocol features use documented embedded fallbacks. It renders to any uint8_t* framebuffer with zero platform dependencies.

RIPlib is a portable rendering/parser core, not a complete terminal application. A host app still owns transport, real filesystem transfer, sound playback, external URL/program launch, and OS clipboard integration.

Host-mediated operations such as real filesystem transfer, Zmodem/RAF storage, OS clipboard integration, URL launch/delete callbacks, true direct-RGB framebuffers, and monitor overscan remain outside the portable core. The parser accepts those protocol surfaces where possible and exposes embedded-friendly fallbacks instead of claiming host behavior the library cannot provide by itself.

• Line (Bresenham, 16-bit dash patterns, variable thickness)
• Rectangle, Rounded Rectangle (outline + filled)
• Circle, Ellipse (midpoint algorithm, outline + filled)
• Arc, Pie, Elliptical Arc/Pie (FPU-accurate angle test)
• Cubic Bezier (FPU parametric evaluation, adaptive step count)
• Polyline, Polygon (outline + scanline fill)
• Flood Fill (border-color semantics, patterned fill)
• Text rendering (bitmap 8x8/8x16 + BGI stroke fonts)
• Copy/Save/Restore region, Get Pixel
• 5 write modes: COPY(0), XOR(1), OR(2), AND(3), NOT(4) — wire order per the shipping RIPSCRIP.DLL (MD5 bade8b1f…, self-reported version 3.00.04)
• 11 built-in fill patterns + user-defined slot (4 BGI styles are approximated)
• Clip region (set, save, restore)
• Dirty-rectangle callback for efficient screen refresh

• Borland CHR binary format parser
• 10 included fonts: Triplex, Small, Sans-Serif, Gothic, Script, Simplex, Triplex Script, Complex, European, Bold
• Scale 1-10, three text directions (horizontal, vertical CW, vertical CCW)
• Font attributes: bold, italic, underline, shadow
• String width measurement for layout

The three-way command crosswalk compares the current RIPlib handlers, RIPtel's shipping DLL, and a pinned bbs-land reference. The audit fixes and evidence cover all 117 driver keys, corrected ellipse/fill/move behavior, and the remaining semantic limits. Handler coverage does not establish pixel parity.

RIPlib's command set is checked against the RIPscrip driver TeleGrafix shipped, rather than against the published specifications alone. In v2.0.0 that moved thirteen Level-0 commands to different meanings — see CHANGELOG.md for the list and docs/spec/12-dll-provenance.md for the evidence behind each one.

• The driver's own dispatch table is transcribed verbatim in docs/spec/13-dll-command-table.md; the scripts under scripts/ regenerate every binary-derived table and verify the image fingerprint before reporting.
• scripts/ci-local.sh runs the CI jobs against the local toolchain. It reports PASS, FAIL, or SKIP with a reason, and never counts a skip as a pass — the summary lists skips separately under "A SKIP IS NOT A PASS" and the exit status ignores them. Use --list to see which jobs this machine can run; the sanitizer job needs a toolchain that ships libasan/libubsan, which a Cygwin gcc does not.
• Base-64 MegaNum is implemented. RIPscrip has a second radix (0-9 A-Z a-z # &, case-sensitive) that four commands always use regardless of any global setting — see §1.5.1.
• All 36 RIP_PolyMarker glyph outlines are carried, and negotiated coordinate/colour widths (|n, |M) are honoured.
• Authentic .RIP scenes are replayed byte-for-byte as a regression net. Those scenes are third-party content and are not vendored, so this suite reports SKIP in CI and on a plain checkout; point -DRIPLIB_CORPUS_DIR at a RIPterm/RIPtel install to run it.

Known limitations are recorded rather than implied: character spacing reaches the stroke fonts only, the coordinate-width conversion saturates at 1295 (sound for a fixed 640×400 device space, revisit for a world transform), and two Level-3 handlers remain unidentified.

• 100+ recognized command surfaces across Level 0, Level 1, Extended, and Level 2, with host-only operations bridged to callbacks/fallbacks
• Full v1.54 drawing command set
• Level 2 Drawing Port system (36 ports with state save/restore)
• Variable expansion (30+ built-in vars including $RAND$, $DATE$, $RIPVER$, $WOYM$, layout/time/color-name vars)
• Mouse region hit testing with button support
• ESC[! auto-detection and version response (advertises v3.2: RIPSCRIP032001)
• Icon lookup with BMP/ICN format support

• AND and NOT write modes (beyond standard COPY/XOR/OR)
• Vertical text: dir 1 bottom-to-top (BGI VERT_DIR, as the 1.54 specification states), dir 2 CCW, dir 3 CW top-to-bottom
• Font attributes (bold/italic/underline/shadow) on |q
• 11 native fill bitmaps + user slot (most implementations have 8; 4 BGI styles remain approximated — see §A2G.4)
• FPU Bezier curves (no integer rounding artifacts)
• FPU trigonometry (sinf/cosf/atan2f for arcs and pies)
• Scanline pie fill (eliminates flood-fill leak bugs)
• Patterned flood fill (two-pass algorithm)

• State push/pop stack — |^ / |~ save/restore the drawing prelude (colors, fill/line/write state including custom 16-bit line patterns, font and extended font state, cursor, viewport, filled-border mode). Bounded LIFO, 8 frames.
• Layout / introspection variables — $CX$ $CY$ $VPW$ $VPH$ $VPCX$ $VPCY$ $CCOL$ $CFCOL$ $CBCOL$ for "center this text" without hardcoded 320,200.
• Time component variables — $HOUR$ (12-hour) $MHOUR$ (24-hour) $MIN$ $SEC$ $WDAY$ (0=Sunday) $DOW$ (day name) $DAY$ $MONTHNUM$ $MONTH$ (month name) for greeting/banner variations. Names and semantics match the shipping RIPSCRIP.DLL.
• EGA color-name aliases — $BLACK$ $BLUE$ $GREEN$ $CYAN$ $RED$ $MAGENTA$ $BROWN$ $LIGHTGRAY$ $DARKGRAY$ $LIGHTBLUE$ $LIGHTGREEN$ $LIGHTCYAN$ $LIGHTRED$ $LIGHTMAGENTA$ $YELLOW$ $WHITE$.
• <<DEBUG msg>> preprocessor directive — off by default. Enable with -DRIPLIB_ENABLE_DEBUG_DIRECTIVE=ON to push >DEBUG: <msg>\r to TX for development instrumentation. It is not safe to leave enabled in production: unsolicited terminal-to-host traffic has no precedent in the protocol, and a BBS sitting at a prompt reads those bytes as keystrokes. The directive is parsed and consumed either way, so rendering is identical.
• Radial gradient — |28 gains mode 2 for FPU per-pixel radial fill alongside the existing horizontal (0) and vertical (1) modes.

$RIPVER$ and the ESC[! probe both report RIPSCRIP032001.

#include "drawing.h"
#include "bgi_font.h"
#include "font_bgi_trip.h"

uint8_t framebuffer[640 * 400];

int main(void) {
    draw_init(framebuffer, 640, 640, 400);

    // Draw shapes
    draw_set_color(0xFF);
    draw_rounded_rect(10, 10, 200, 100, 8, true);
    draw_circle(320, 200, 50, false);

    // BGI stroke font
    bgi_font_t font;
    bgi_font_parse(&font, bgi_font_trip, bgi_font_trip_size);
    bgi_font_draw_string(&font, 30, 60, "Hello RIPlib", 12, 2, 0xFF, 0);

    // framebuffer now contains the rendered image
    return 0;
}

mkdir build && cd build
cmake ..
cmake --build .

With examples:

cmake -DRIPLIB_BUILD_EXAMPLES=ON ..
cmake --build .
./riplib_demo > output.pgm

RIPlib requires 3 extern functions implemented by your platform:

// Set a palette color (indexed color → RGB565)
void palette_write_rgb565(uint8_t index, uint16_t rgb565);

// Read a palette color
uint16_t palette_read_rgb565(uint8_t index);

// Send bytes to BBS (TCP send, serial write, etc.)
void riplib_host_tx(const char *buf, int len);

See examples/platform_stubs.c for a minimal desktop implementation. The PSRAM arena allocator is provided as static inline in riplib_platform.h and uses malloc() on desktop platforms.

#include "ripscrip.h"

rip_state_t rip = {0};        // caller MUST zero-init before first use
comp_context_t ctx = {0};
rip_init_first(&rip);

// Feed bytes from a BBS connection:
while (connected) {
    uint8_t byte = read_from_bbs();
    rip_process(&rip, &ctx, byte);
    // Drawing commands automatically render to the framebuffer
}

// On disconnect (preserves PSRAM arena, clears session state):
rip_session_reset(&rip);

RIPlib is single-session by design. Every public entrypoint comes in two flavours: explicit-state *_state(rip_state_t *s, ...) variants that are safe across distinct sessions, and globals-based shortcuts (rip_mouse_event_ext, rip_file_upload_*, rip_sync_*_byte, rip_query_response_byte, rip_apply_palette) that operate on the single global session set by the most recent rip_init_first() call.

Embedders running more than one concurrent session must use only the *_state() variants, or serialise all calls behind a single mutex. Calling rip_init_first(&sessionB) silently flips the global pointer away from sessionA, so any subsequent globals-based call would operate on the wrong session.

See the SESSION SAFETY block at the bottom of include/ripscrip.h for the full per-function classification.

riplib/
├── include/          Public header files
│   ├── drawing.h         Drawing primitives API
│   ├── bgi_font.h        BGI stroke font API
│   ├── ripscrip.h        RIPscrip protocol parser
│   ├── ripscrip2.h       Level 2 port system
│   ├── rip_icons.h       Icon lookup + cache
│   ├── rip_icn.h         ICN format parser
│   ├── riplib_platform.h Platform abstraction
│   └── riplib_version.h  Version macros + accessor
├── src/              Implementation
│   ├── drawing.c         Drawing primitives
│   ├── bgi_font.c        CHR font parser + renderer
│   ├── ripscrip.c        Protocol parser FSM + handlers
│   ├── ripscrip2.c       Level 2 port system + widgets
│   ├── rip_preproc.c     <<IF>>/<<ELSE>>/<<ENDIF>> preprocessor
│   ├── rip_variables.c   $VAR$ expansion + IF-expr evaluator
│   ├── rip_clipboard.c   Clipboard capture/blit/scale
│   ├── rip_icons.c       Icon pipeline
│   ├── rip_icn.c         ICN format decoder
│   ├── riplib_version.c  Runtime version accessor
│   └── (rip_meganum.h, rip_internal.h — header-only helpers)
├── fonts/            Font data (flash-embedded)
│   ├── font_bgi_*.h      10 BGI stroke fonts (~76KB)
│   └── font_cp437_*.h    CP437 bitmap fonts (8×8 + 8×16)
├── icons/            Icon data (optional)
│   ├── rip_icons_data.*   95 BMP icons (~1.6MB)
│   └── rip_icns_data.*    3 ICN icons (~90KB)
├── tests/            Test suites
│   ├── test_drawing.c    Rendering primitives
│   ├── test_ripscrip.c   Parser FSM, commands, variables
│   ├── test_compat.c     Fixture replay with frame-hash lockdown
│   ├── test_corpus.c     Authentic .RIP scene replay (opt-in)
│   ├── test_fuzz_seeded.c Seeded mutation fuzzer
│   └── fuzz_parser.c     libFuzzer target (optional, needs clang)
├── scripts/          Tooling
│   ├── ci-local.sh       Run the CI jobs locally (PASS/FAIL/SKIP-with-reason)
│   ├── dll-*.py          Regenerate binary-derived tables from the driver
│   ├── ref-compare.py    RIPlib and a third-party reference vs the driver
│   ├── corpus-scan.py    Opcode census over a corpus
│   ├── check-branding.sh Platform-independence lint (CI)
│   ├── check-command-docs.py Parser/spec agreement lint (CI)
│   ├── check-spec-examples.py Spec command blocks vs the record (CI)
│   └── check-dll-table.py  Segment 13 vs the dispatch record
├── examples/         Demo programs
└── docs/             Documentation

RIPlib is proven on:

• Raspberry Pi RP2350 / Pico 2 @ 384MHz (RP235XA, 30 GPIO)
• x86/x64 Windows, Linux, macOS (CI matrix, Debug + Release)
• Any C99 platform with a framebuffer

The library uses single-precision FPU (sinf, cosf, atan2f, sqrtf) for accurate curve and angle calculations. On platforms without hardware FPU, the compiler provides software implementations — no code changes needed.

RIPlib's first deployment was on an RP2350-class microcontroller, and that remains the reference target for embedded builds: Cortex-M33 with a single-precision FPU, rendering to an 8-bit indexed framebuffer with video scanned out over HSTX or PIO-DVI. Nothing in the library depends on that target — it is simply the configuration the embedded numbers in this README were measured on.

To build RIPlib for the Pico 2 / RP2350 target:

cmake -B build-pico2 -DCMAKE_TOOLCHAIN_FILE=cmake/arm-none-eabi.cmake
cmake --build build-pico2
# produces build-pico2/libriplib.a

The toolchain file targets Cortex-M33 + fpv5-sp-d16 FPU + Thumb with -DPICO_RP2350=1 so downstream firmware that uses the pico-sdk's chip-detection macros sees a consistent build flag. Both RP2350 packages — RP235XA (30 GPIO, QFN-60) and RP235XB (48 GPIO, QFN-80) — share the same CPU core, so one toolchain file builds for either; pin-count differences are a board-level concern.

cmake -B build -DRIPLIB_BUILD_TESTS=ON -DBUILD_TESTING=ON
cmake --build build
ctest --test-dir build --output-on-failure

The suite includes rendering, parser, compatibility, and audit checks:

• test_drawing — 41 rendering primitives, fonts, and edge-case checks.
• test_ripscrip — 328 FSM transitions, dispatched commands, mouse hit-testing, variable expansion, host callbacks, port system.
• test_compat — 6 fixture replays with FNV-1a frame-hash lockdown so pixel-level regressions show up immediately.
• test_corpus — replays authentic TeleGrafix .RIP scenes byte-for-byte, asserting no crash, no wedged FSM and no drawing outside the framebuffer, and reporting painted pixels, distinct colours and pending asset requests. Reports SKIP unless -DRIPLIB_CORPUS_DIR points at an installation.
• test_dll_conformance — 13 instrument regressions, including numeric opcodes, complete handlers, continuation rows, and negative reinjections.
• test_fuzz_seeded — fixed-seed mutation fuzzer over the command layer, including long payloads with \ continuations, against a guard-banded framebuffer. Takes an iteration count; ctest runs 20,000.

CI runs the matrix on Linux, macOS, and Windows in both Debug and Release, plus dedicated UBSan/ASan, coverage-floor, embedded ARM archive, -fanalyzer, and two lints — platform-independence and parser/spec agreement — for 12 jobs in total.

A local sanitizer build is not equivalent to the Linux job, which is worth knowing before trusting one. UBSan's nonnull-attribute check — passing NULL to a parameter declared never-null, such as memcpy's source at zero length — fires only because glibc annotates those functions that way. Windows CRT headers carry no such annotation, so the check cannot trigger there under any compiler, clang included. A real defect of exactly that shape passed every local suite and was caught only by the Linux job. ASan is no help either: a zero-length copy touches no memory. Reproduce that class on Linux, or trust CI for it.

RIPlib is extracted from the A2GSPU firmware — the rendering software for an RP2350-based Apple IIgs GPU coprocessor that provides DVI output, RIPscrip terminal rendering, and 10 BGI stroke fonts. RIPlib is a parallel project: the drawing engine was designed for that embedded use, but is fully platform-independent.
